*Status in the A.M.



-Operators can plan their day and focus on Pump Jacks that are down

-Operators can leave at the end of the day knowing everything is running

-24 hour callout is available

​

​

              *Satellite Communications



-Install anywhere, no dead zones

-No expensive towers

-Reliable

-GPS

​

           *Sensor on Pump Jack Arm



-Verifies belts, clutch, and engines are functioning

​

           *Use on Any Pump Jack



-Installs on Arrows, V-8 engines, Electric Drivers

-Can be installed on Compressors, Generators

​

             *Record Run Time



-Monitor notifies when unit goes down and when unit is restarted

-Emailed monthly or daily reports

​

​

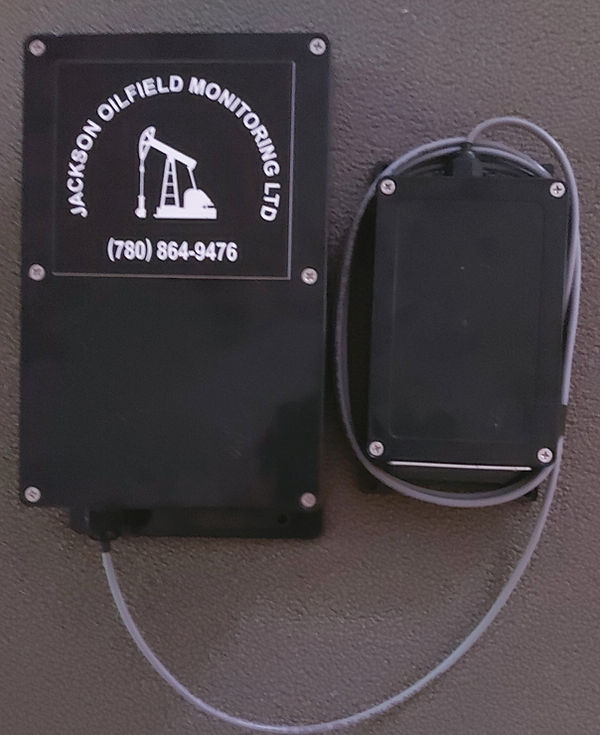

    MONITOR SPECIFICATIONS

​

​

          *SPM, Channels



-Hall sensor on Pump Jack Alarms when slower than .5 SPM

-6 Shutdown channels are open circuit

-Alarms when circuit closes and messages when circuit opens

​

​

            *Iridium Satellite

​

-Mount straight up with a view of the sky

-Uses 3-5 amps of power daily. Alarms will add to power consumption

-Powered up on stand-by 24 hours a day

​

​

​

                   *Power

​

-Uses 12 or 24 Volt power

-Shut down channels are 5 Volt

​

​

                 *Installation

​

-Mounts at rear of Pump Jack (non-hazardous area)

-Labeled terminal connections inside

-Shut down channels can be 200 feet away

-Can be relocated easily

​

​

​

​

​
